74LS153 Dual 4 to 1 Selector/Multiplexer

The 74LS series of integrated circuits (ICs) was one of the most popular logic families of transistor-transistor logic (TTL) logic chips. 74LS series is a bipolar, low-power Schottky IC.74LS153 monolithic, data selectors/multiplexers contain inverters and drivers to supply fully com- elementary, on-chip, binary decoding data selection to the AND-OR gates. Separate strobe inputs are provided for each of the two four-line sections.

74LS153 Features

• Contains Two Multiplexers To Select Data Inputs Based on Data Select Inputs
• Performs Parallel to Serial Conversion
• Low Power
• Operating Temperature up to 70°C
• Standard TTL Switching Voltages

74LS153 Specifications

Supply Voltage	4.75 – 5.25Vdc
Maximum Clock Frequency	40Mhz
Power Dissipation	2mW/gate @100kHz
Minimum Output Current	8mA
Propagation Delay	10nS
Fan Out (TTL Loads)	20

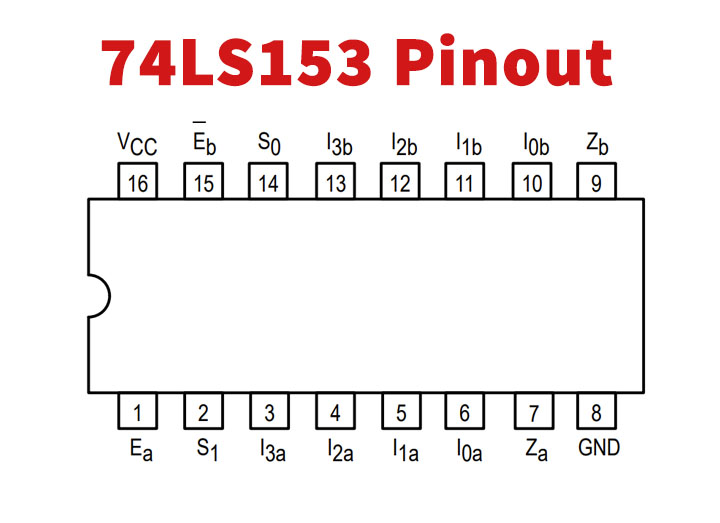

74LS153 Pinout Diagram

74LS153 Pin Description

Pin No	Pin Name	Description
1	Ea	Enable Pin a
2	S1	Selection Bit of b
3	I3a	Input Pin 3 of a
4	I2a	Input Pin 2 of a
5	I1a	Input Pin 1 of a
6	I0a	Input Pin 0 of a
7	Za	Output Pin A
8	GND	Ground
9	Zb	Output Pin B
10	I0b	Input Pin 0 of b
11	I1b	Input Pin 1 of b
12	I2b	Input Pin 2 of b
13	I3b	Input Pin 3 of b
14	S0	Selection Bit of a
15	Eb	Enable Pin b
16	VCC	Positive Supply

74LS153 Circuit

Applications

• Multiple data can be transmitted using a single line

74LS153 Alternative Equivalent

74LS151, 74LS258
