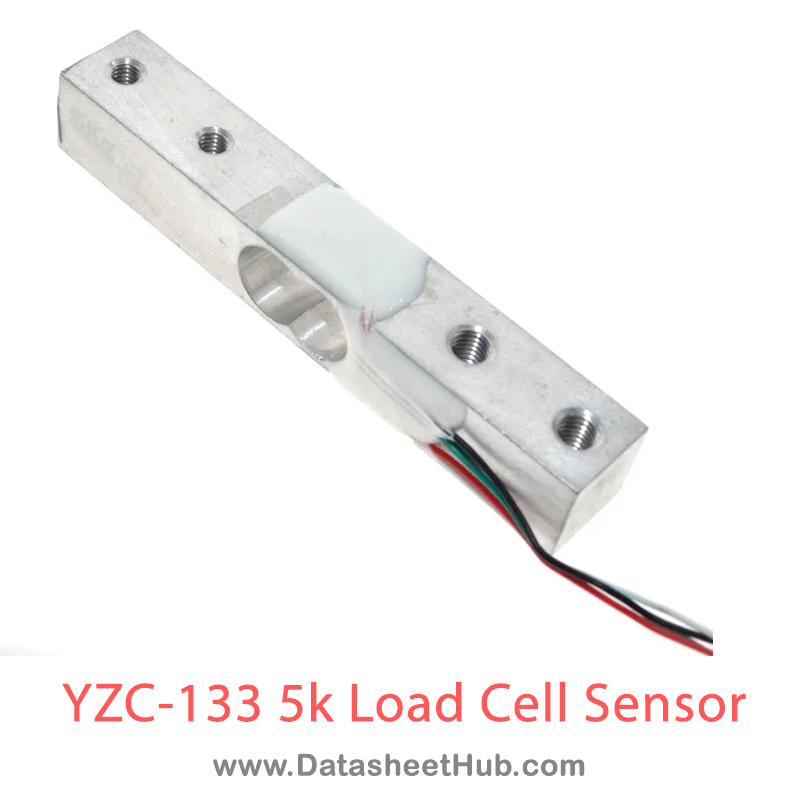

The YZC-133 5kg Weighing Sensor Load Cell Sensor is a high-precision measuring device designed to accurately measure weights up to 5 kilograms. This load cell sensor is widely used in various applications where precise weight measurement is required, such as industrial weighing systems, laboratory equipment, packaging machinery, and more.
The YZC-133 load cell sensor features a robust construction that ensures durability and longevity. It is made from high-quality materials that can withstand heavy loads and harsh environments, making it suitable for both indoor and outdoor use. The sensor’s design includes strain gauges that are carefully positioned to detect even the slightest changes in weight, ensuring exceptional accuracy and reliability.
Features
- Output impedance: 1000 10%
- Insulation resistance: 2000 M
- Operating temperature range: -20 ~ 65 C
- Protection: IP65
- Cable: 0.8 135 cm
- Table size: 160 160 mm
Pinout
Specifications
| Model | YZC-133 |
| Rated Load | 5 (kg) |
| Recommended Operating Voltage | 5 VDC |
| Maximum operating voltage | 10 VDC |
| Material | Aluminum |
| Dimensions | 80mmx13mm |
| Rated output | 1.0 0.15mV / V |
| Nonlinear | 0.03% F.S |
| Hysteresis | 0.03% F.S |
| Reputability | 0.03% F.S |
| Creep (5 minutes) | 0.05% F.S |
| Temperature Effect on Output | 0.003% F.S / C |
| Temperature Effect on Zero | 0.02% F.S / C |
| Zero Balance | 0.1000 mV / V |
| Input impedance | 1066 20% |
Application
- Industrial weighing systems and scales
- Kitchen scales and food portioning devices
- Smart home applications such as smart pet feeders or automated plant watering systems
- Weight measurement in fitness and health monitoring devices
Datasheet
Download the Datasheet for YZC-133 5kg Weighing Sensor from the link given below.
