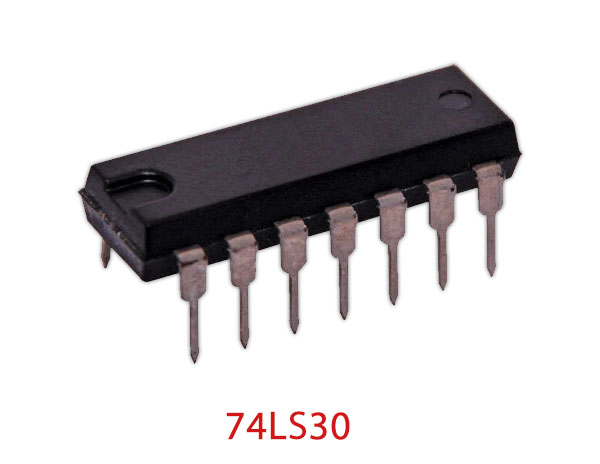

The 74LS series of integrated circuits (ICs) was one of the most popular logic families of transistor-transistor logic (TTL) logic chips. 74LS series is a bipolar, low-power Schottky IC. 74LS30 8-input NAND Gate contains 8-input NAND Gates
74LS30 Features
- Three Independent NOR Gates
- Standard Pin Configuration
- Fast Switching Times
- Operating Temperature up to 70°C
- Standard TTL Switching Voltages
74LS30 Specifications
| Supply Voltage | 4.75 – 5.25Vdc |
| Maximum Clock Frequency | 40Mhz |
| Power Dissipation | 2mW/gate @100kHz |
| Minimum Output Current | 8mA |
| Propagation Delay | 10nS |
| Fan Out (TTL Loads) | 20 |
74LS30 Pinout Diagram
74LS30 Pin Description
| Pin No | Pin Name | Description |
| 1 | A1 | NAND Gate 1 Input 1 |
| 2 | B1 | NAND Gate 1 Input 2 |
| 3 | C1 | NAND Gate 1 Input 3 |
| 4 | D1 | NAND Gate 1 Input 4 |
| 5 | E1 | NAND Gate 1 Input 5 |
| 6 | F1 | NAND Gate 1 Input 6 |
| 7 | GND | Ground |
| 8 | X | NAND Gate 1 Output |
| 9 | NC | No Connection |
| 10 | NC | No Connection |
| 11 | G1 | NAND Gate 1 Input 7 |
| 12 | H1 | NAND Gate 1 Input 8 |
| 13 | NC | No Connection |
| 14 | VCC | Positive Supply |
74LS30 Circuit
Applications
- Freezer warning buzzer circuits
- Automatic temperature control circuits
74LS30 Alternative Equivalent
74LS03, 74LS10, 74LS20
Download 74LS30 8-input NAND Gate Datasheet from the link given below.
