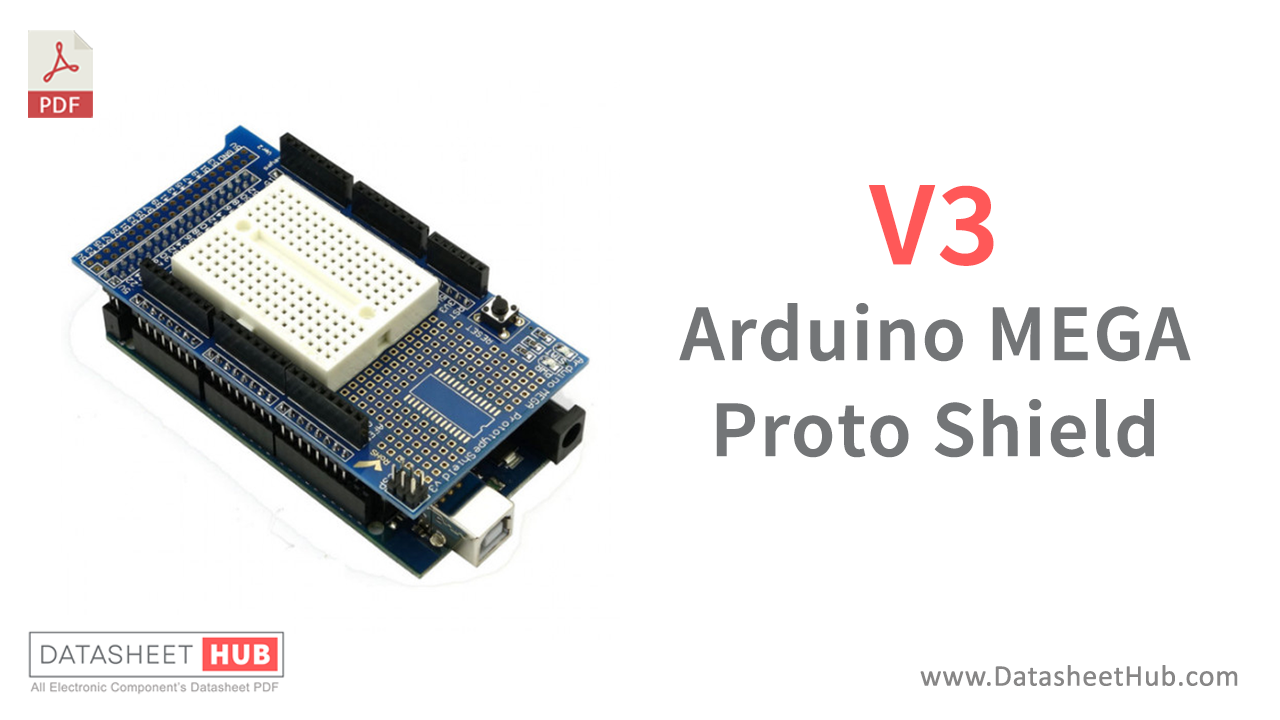

Introducing the Arduino MEGA Proto Shield, a versatile and convenient expansion board designed to enhance the functionality and prototyping capabilities of your Arduino MEGA microcontroller. This shield provides a robust platform for creating and testing your electronic circuits, making it an indispensable tool for electronics enthusiasts, hobbyists, and professionals alike.

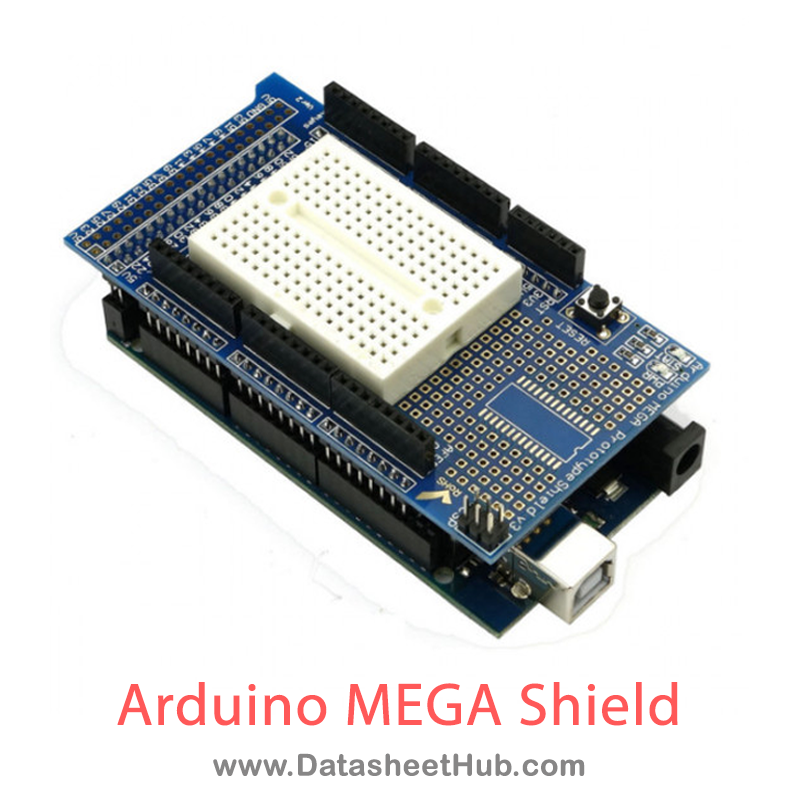

The Arduino MEGA Proto Shield is specifically designed to fit seamlessly on top of the Arduino MEGA board, providing a convenient prototyping area for adding and testing components. It features a large soldering area with a grid of interconnected through-holes, allowing you to easily mount and connect various electronic components such as resistors, capacitors, sensors, and actuators.
With the Proto Shield, you can quickly and efficiently build and test your circuits without the need for additional breadboards or jumper wires. The soldering area provides a stable and secure platform for components, minimizing the risk of loose connections or accidental disconnections during prototyping.
Features
- Pinout all of the Arduino digital and analog interface
- Support I2C interface
- Support 32 Servo Motor Drive Shield interface
- Support Bluetooth module communication interface
- Support SD card module communication interface
- Support APC220 wireless RF modules communication interface
- Support LCD Serial and Parallel interface

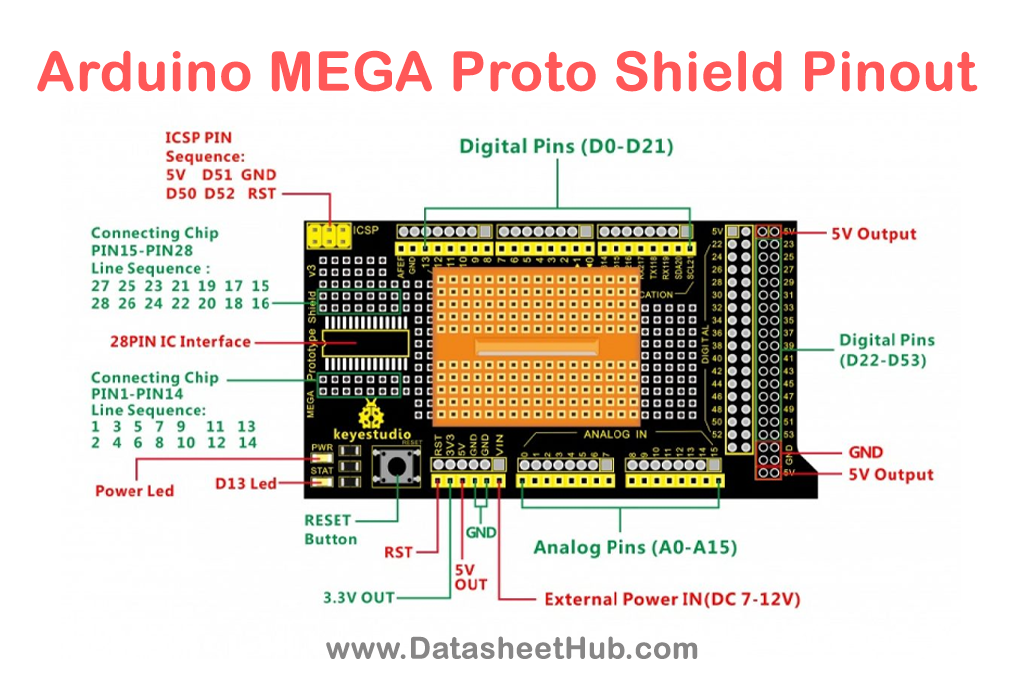

Pinout
Specifications
| Size | 10cm x 5.5cm |
Application
- Prototyping: The Arduino MEGA Proto Shield is primarily designed for prototyping electronic circuits and projects. It provides a convenient platform for connecting and testing components, sensors, and other modules with an Arduino MEGA board.
- Custom circuit development: The shield allows users to design and implement their own custom circuits by soldering components directly onto the prototyping area. This makes it easier to create unique circuits and expand the capabilities of the Arduino MEGA.
- Sensor integration: The Proto Shield provides a standardized layout and pin arrangement for connecting various sensors and modules to the Arduino MEGA. It simplifies the process of integrating sensors, such as temperature sensors, motion sensors, or environmental sensors, into projects.
Datasheet
Download the Datasheet for Arduino MEGA Proto Shield from the link given below.
