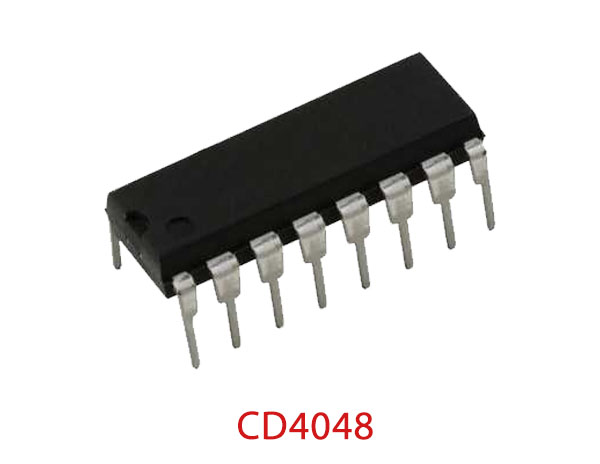

CD4048 belongs to the 4000 Series CMOS Logic Family of Integrated Circuits (IC’s) constructed with N- and P-channel enhancement mode transistors. CD4048 has CMOS Multifunction Expandable 8-Input Gate
CD4048 has a supply voltage range of 5V to 20V, which is much higher than any contemporary logic family. It has buffered output which improves transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
CD4048 Features
- Three-state output .
- Many logic functions available in one package
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20V
- Maximum input current of 1 uA at 18 V (full package-temperature range), 100 nA
- at 18 V and 25°C
- Noise margin (full package-temperature range)= 1 V at Vpp5 V, 2 V at VpD
- 10 V, 2.5 V at VDD=15 V
- 5-V, 10-V, and 15-V parametric ratings
CD4048 Specifications
Absolute Maximum Ratings
- DC Supply Voltage Range, (VDD): -0.5V to +20V (Voltage Referenced to VSS Terminals)
- Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
- DC Input Current, Any One Input: ±10mA
- Operating Temperature Range: -55oC to +125oC Package Types D, F, K, H
- Storage Temperature Range (TSTG): -65oC to +150oC
- Lead Temperature (During Soldering): +265oC
- At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum

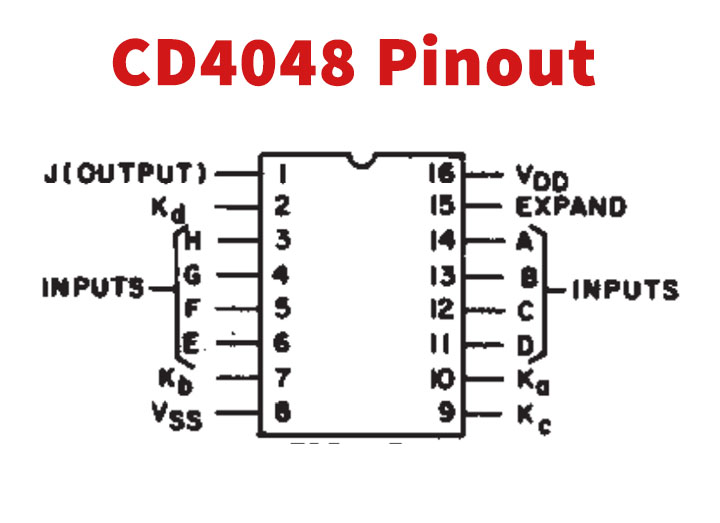

CD4048 Pinout Diagram
CD4048 Pin Description
| Pin No | Pin Name | Description |
| 1 | J(OUT) | Output Of Function Gate |
| 2 | Kd | Binary Input Pin Kd |
| 3 | H | Input Pin H |
| 4 | G | Input Pin G |
| 5 | F | Input Pin F |
| 6 | E | Input Pin E |
| 7 | Kb | Binary Input Pin Kb |
| 8 | VSS | Supply Voltage |
| 9 | Kc | Binary Input Pin Kc |
| 10 | Ka | Binary Input Pin Ka |
| 11 | D | Input Pin D |
| 12 | C | Input Pin C |
| 13 | B | Input Pin B |
| 14 | A | Input Pin A |
| 15 | EXPAND | Expand Pin |
| 16 | VDD | Drain Voltage |
CD4048 Circuit
Applications
- Selection of up to 8 logic functions
- Digital control of logic
- General-purpose gating logic
- Decoding
- Encoding
CD4048 Alternative Equivalent
Download CD4048 CMOS Multifunction Expandable 8-Input Gate Datasheet from the link given below.
