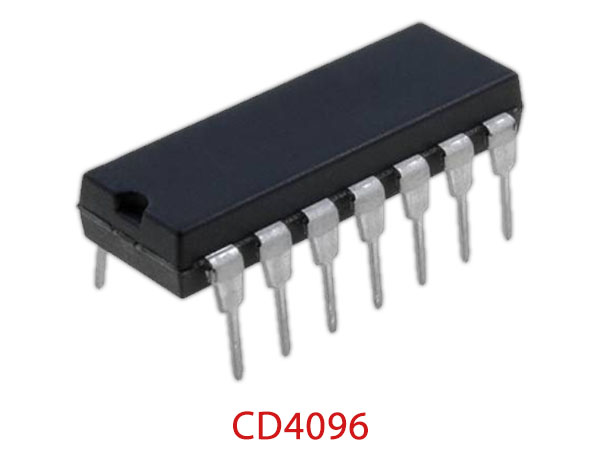

CD4096 belongs to the 4000 Series CMOS Logic Family of Integrated Circuits (IC’s) constructed with N- and P-channel enhancement mode transistors. CD4096 has a Gated J-K flip-flop (inverting and non-inverting)
CD4096 has a supply voltage range of 5V to 20V, which is much higher than any contemporary logic family. It has buffered output which improves transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
CD4096 Features
- Set-Reset Capability
- High Voltage Types (20V Rating)
- CD4095BMS Non-Inverting J and K Inputs
- CD4096BMS Inverting and Non-Inverting J and K Inputs
- 16MHz Toggle Rate (Typ.) at VDD – VSS = 10V
- Gated Inputs
- Standard Symmetrical Output Characteristics
- 100% Tested for Maximum Quiescent Current at 20V
- 5V, 10V, and 15V Parametric Ratings
- Maximum Input Current of 1μA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC
- Noise Margin (Over Full Package Temperature Range):
- 1V at VDD = 5V
- 2V at VDD = 10V
- 2.5V at VDD = 15V
CD4096 Specifications
Absolute Maximum Ratings
- DC Supply Voltage Range, (VDD): -0.5V to +20V (Voltage Referenced to VSS Terminals)
- Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
- DC Input Current, Any One Input: ±10mA
- Operating Temperature Range: -55oC to +125oC Package Types D, F, K, H
- Storage Temperature Range (TSTG): -65oC to +150oC
- Lead Temperature (During Soldering): +265oC
- At Distance 1/16 ± 1/32 Inch (1.59mm ± 0.79mm) from case for 10s Maximum
CD4096 Pinout Diagram
CD4096 Pin Description
| Pin No | Pin Name | Description |
| 1 | NC | Not Connected |
| 2 | RESET | Reset Pin |
| 3 | J1 | Input Pin J1 |
| 4 | J2 | Input Pin J2 |
| 5 | J3′ | Invert Input Pin J3 |
| 6 | Q’ | Invert Output |
| 7 | VSS | Supply Voltage |
| 8 | Q | Output Pin |
| 9 | K3′ | Invert Input Pin K3 |
| 10 | K2 | Input Pin K2 |
| 11 | K1 | Input Pin K1 |
| 12 | CLK | Clock Pin |
| 13 | SET | Set Pin |
| 14 | VDD | Drain Voltage |
CD4096 Circuit
Applications
- Registers
- Counters
- Control Circuits
CD4096 Alternative Equivalent
CD4095
Download CD4096-Gated J-K flip-flop (inverting and non-inverting) Datasheet from the link given below.
