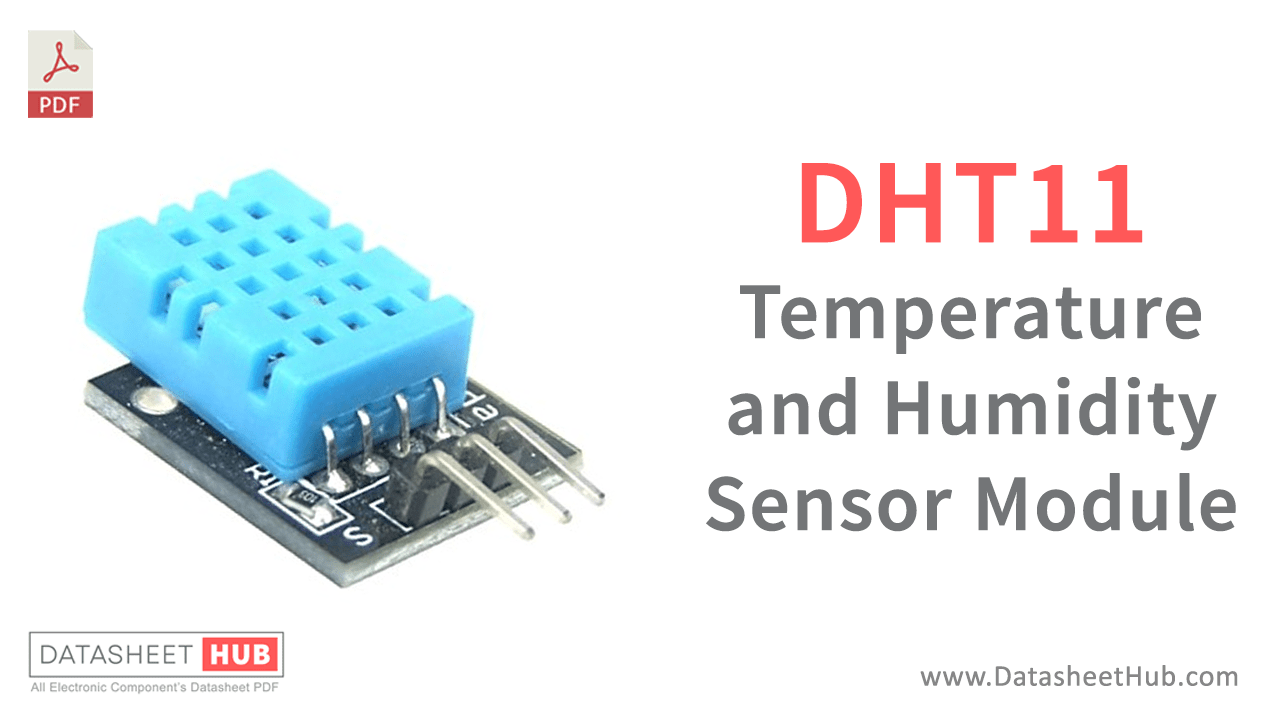

Introducing the DHT11 Temperature and Humidity Sensor Module, a compact and reliable device designed to measure temperature and humidity with high accuracy. This sensor module is a versatile solution for monitoring environmental conditions and is widely used in applications such as home automation, weather stations, and HVAC systems.
The DHT11 Sensor Module provides real-time measurements of temperature and humidity, allowing you to gather essential data for controlling and optimizing your surroundings. It utilizes a calibrated digital sensor that ensures precise and consistent readings. The temperature measurement range of the DHT11 is 0°C to 50°C (32°F to 122°F), while the humidity measurement range is 20% to 90% RH (Relative Humidity).
Operating at a voltage range of 3.3V to 5V, the DHT11 Sensor Module is compatible with a variety of microcontrollers and development boards, including Arduino and Raspberry Pi. It communicates via a single-wire digital interface, enabling easy integration into your projects. With its simple connection and straightforward programming, you can quickly retrieve temperature and humidity data from the sensor.
Features
- Low power consumption.
- DHT11 sensor adopts
- The module can detect the surrounding environment of the humidity and temperature
- High reliability and excellent long-term stability
- The output from the digital output
- Has a fixed bolt hole and easy installation
Pinout
| Pin Name | Pin Description |
| Vcc | Power supply 3.5V to 5.5V |
| Data | Outputs both Temperature and Humidity through serial Data |
| Ground | Connected to the ground of the circuit |
Specifications
| Humidity Measuring Range(%) | 20 to 90 |
| Temperature Measuring Range(°C) | 0 to +50 |
| Humidity Measurement Accuracy(%) | ±5.0 |
| Temperature Measurement Accuracy(°C) | ±2.0 |
| Response Time(s) | <5 |
| Supply Voltage (V) | 5 |
| Breadboard Size(mm) | 19×17 (LxW) |
| Weight (gm) | 0.6 |
Application
- Home automation: The sensor module can be utilized in home automation systems to monitor and control indoor climate conditions. It allows for automated adjustments of heating, ventilation, and air conditioning (HVAC) systems based on temperature and humidity readings.
- Indoor comfort optimization: The DHT11 sensor module can be used to optimize indoor comfort in residential or commercial buildings. It provides real-time data on temperature and humidity, allowing for adjustments to ensure a comfortable living or working environment.
- Data logging and analysis: The sensor module can be employed for data logging and analysis purposes. It can collect temperature and humidity data over time, which can be used for trend analysis, energy efficiency assessment, or scientific research.
- Weather stations: The sensor module can be integrated into weather stations for measuring temperature and humidity outdoors. It helps in gathering weather data, contributing to local weather forecasting and analysis.
Datasheet
Download the Datasheet of the DHT11 Temperature and Humidity Sensor from the link given below.
