KY-038 LM393 Sound Detection Module

3,193 views

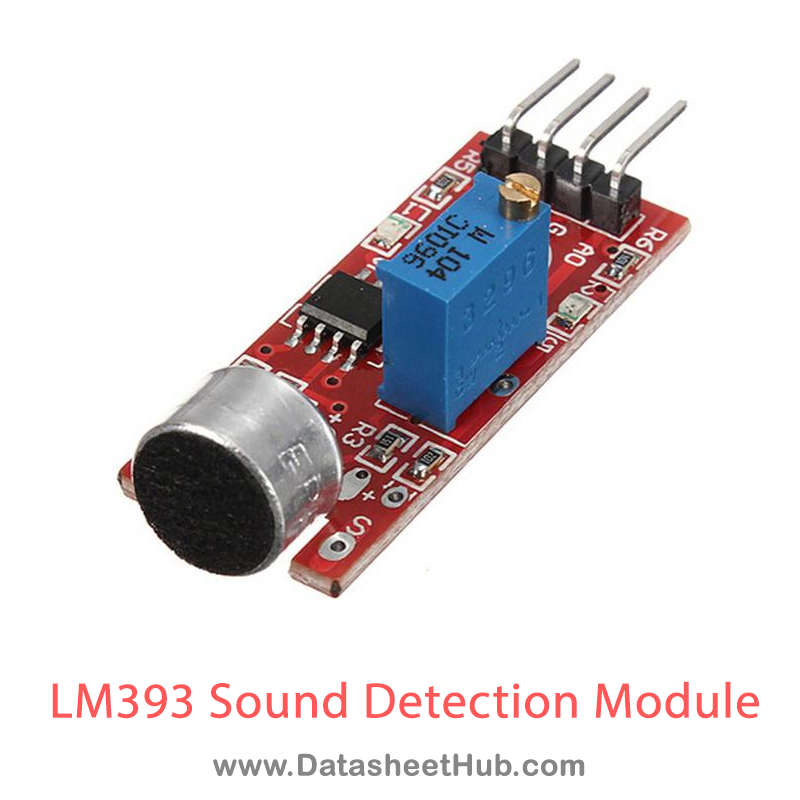

LM393 Sound Detection Sensor Module for Arduino detects whether the sound has exceeded a threshold value. The sound is detected via microphone and fed into an LM393 op-amp. The sound level setpoint is adjusted via an onboard potentiometer. When the sound level exceeds the setpoint, an LED on the module is illuminated and the output is sent low.

Features

  • Signal output indication.
  • The output is digital.
  • Single-channel signal output.
  • With the retaining bolt hole, convenient installation.
  • Output low level and the signal light when there is sound.

Pinout

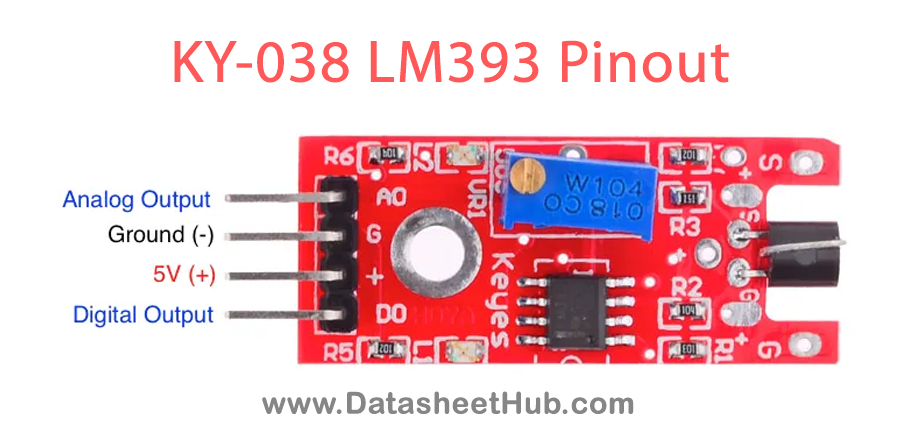

KY-038-LM393-Pinout-1
Pin NameDescription
VCC           The Vcc pin powers the module, typically with +5V
GNDPower Supply Ground
DODigital Output Pin. Directly connected to digital pin of Microcontroller
AOAnalog Output Pin. Directly connected to an analog pin of the Microcontroller

Specifications

Working voltageDC 3.3-5V.
Dimensions36.5 x 17 x 10 (LxWxH)mm
Weight4 gm

Application

  • Sound-activated devices: The KY-038 LM393 Sound Detection Module can be used to create sound-activated devices, such as voice-activated switches, clap-controlled lights, or sound-triggered alarms. It detects sound signals and triggers an action or output based on the sound intensity or threshold set by the user.
  • Home automation: The module can be integrated into home automation systems to detect specific sounds and initiate corresponding actions. For example, it can be used to activate certain devices or perform specific tasks upon detecting a doorbell ring, a baby’s cry, or a specific voice command.
  • Security systems: The KY-038 module can be utilized in security systems to detect unusual sounds or intruder activity. It can trigger an alarm or activate surveillance cameras upon detecting specific sound patterns, helping enhance the security and surveillance capabilities of a premises.

Datasheet

Download the Datasheet of KY-038 LM393 Sound Detection Module from the link given below.
