NodeMcu Sensor Shield GPIO Breakout Board

632 views

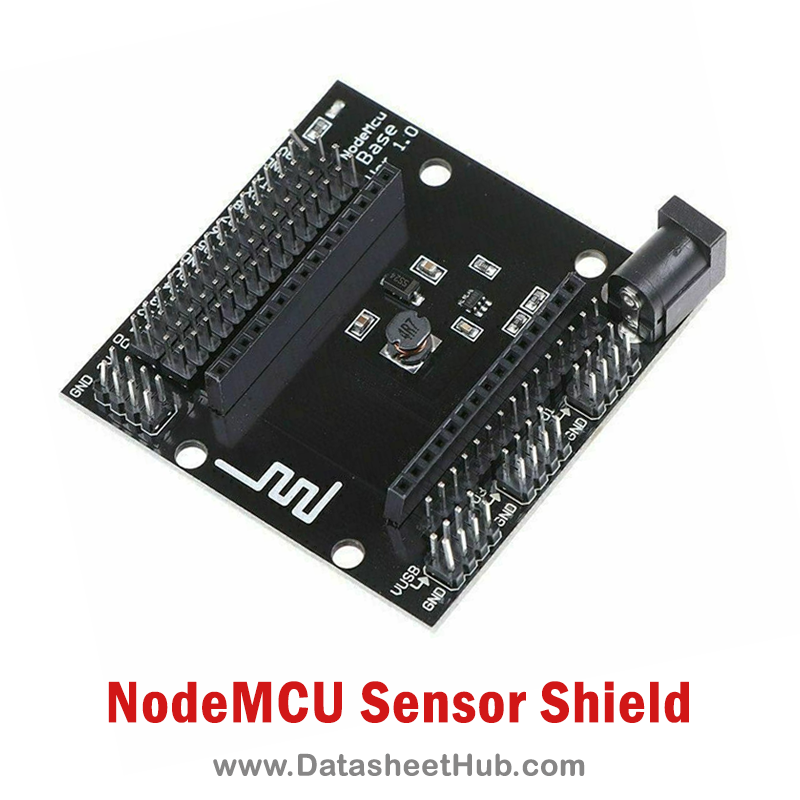

NodeMcu Base / IO Board, Built-in power supply, and a male header. This baseboard is designed to ease the prototyping using the NodeMCU V3 board (Log in). It extends the GPIO of NodeMCU to header pins, which also includes the Vin, VUSB, 5V, 3.3V, and GND.

Features of NodeMcu Sensor Shield

  • Ease the access of GPIO pins on NodeMCU
  • Plug and use prototyping board for NodeMCU LUA V3 board
  • Eliminates the need for a breadboard
  • Extends the 5V, 3.3V, and GND pins
  • Ease the interface between NodeMCU to the various sensor and actuator module
  • Contains a 5V Voltage regulator that is capable of outputting a maximum 1A
  • DC Barrel Jack for power input 6V to 24V DC
  • Designed for NodeMCU LUA V3 (Login) board, not other versions

Pinout of NodeMcu Sensor Shield
