Overview

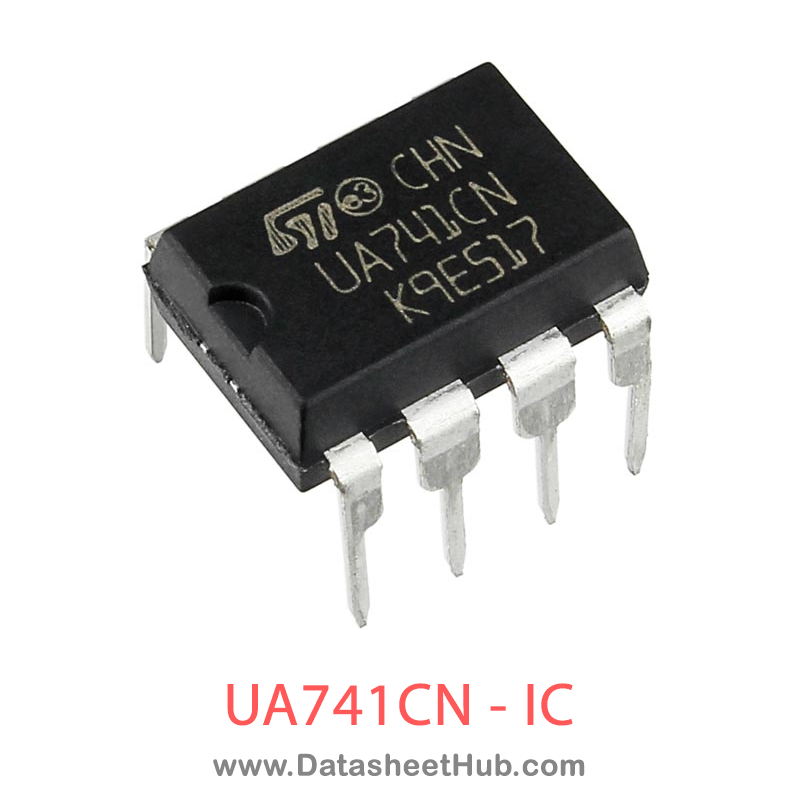

The UA741 is a high-performance monolithic operational amplifier constructed on a single silicon chip. It is intended for a wide range of analog applications. The high gain and wide range of operating voltages provide superior performances in integrators, summing amplifiers, and general feedback applications. The internal compensation network (6 dB/octave) ensures stability in closed-loop circuits.
| Part Number | UA741CN |
| Function | General purpose operational amplifier |
| Package | DIP 8 Pin |
| Manufacturer | STMicroelectronics |
| Datasheet | Download PDF  |
UA741CN Features
- Large input voltage range
- No latch-up
- High gain
- Short-circuit protection
- No frequency compensation required
- Same pin configuration as the UA709
Absolute Maximum Ratings
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VCC | Supply voltage | ±22 | V |
| Vid | Differential input voltage | ±30 | |
| Vi | Input voltage | ±15 | |
| Output short-circuit duration | Infinite | ||
| Rthja | Thermal resistance junction to ambient DIP8 SO8 | 85 125 | °C/W |
| Rthjc | Thermal resistance junction to case DIP8 SO8 | 41 40 | |
| ESD | HBM: human body model(1) DIP package SO package | 500 400 | V |
| MM: machine model(2) | 100 | ||
| CDM: charged device model(3) | 1.5 | kV | |
| Tstg | Storage temperature range | -65 to +150 | °C |
- Human body model: a 100 pF capacitor is charged to the specified voltage, then discharged through a 1.5kΩ resistor between two pins of the device. This is done for all couples of connected pin combinations while the other pins are floating.
- Machine model: a 200 pF capacitor is charged to the specified voltage, then discharged directly between two pins of the device with no external series resistor (internal resistor < 5 Ω). This is done for all couples of connected pin combinations while the other pins are floating.
- Charged device model: all pins and the package are charged together to the specified voltage and then discharged directly to the ground through only one pin. This is done for all pins.

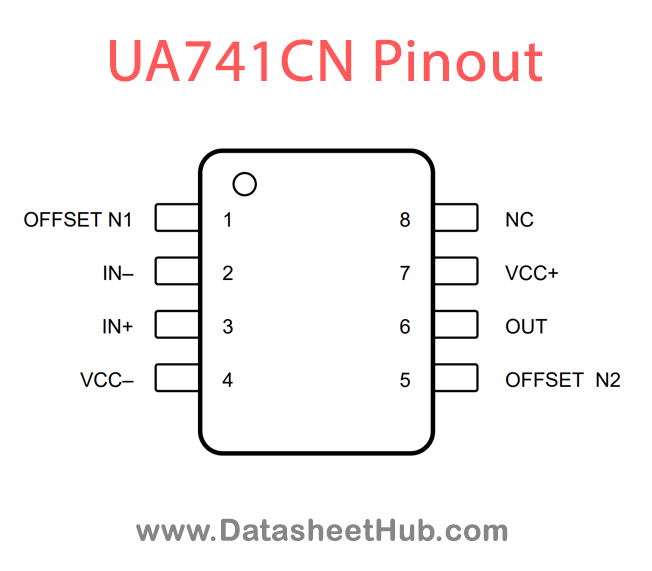

UA741CN Pinout
Pin Definitions
| PIN | I/O | DESCRIPTION | |
| NAME | NO. | ||
| IN+ | 3 | I | Noninverting input |
| IN– | 2 | I | Inverting input |
| NC | 8 | — | No internal connection |
| OFFSET N1 | 1 | I | External input offset voltage adjustment |
| OFFSET N2 | 5 | I | External input offset voltage adjustment |
| OUT | 6 | O | Output |
| VCC+ | 7 | — | Positive supply |
| VCC– | 4 | — | Negative supply |
Applications
- Summing amplifiers
- Voltage followers
- Integrators
- Active filters
- Function generators
- DVDRecordersandPlayers
- ProAudioMixers
UA741CN Datasheet
Download the UA741CN IC Datasheet from the link given below.
