YX5300 MP3 Music Player UART Control Serial Module

3,092 views

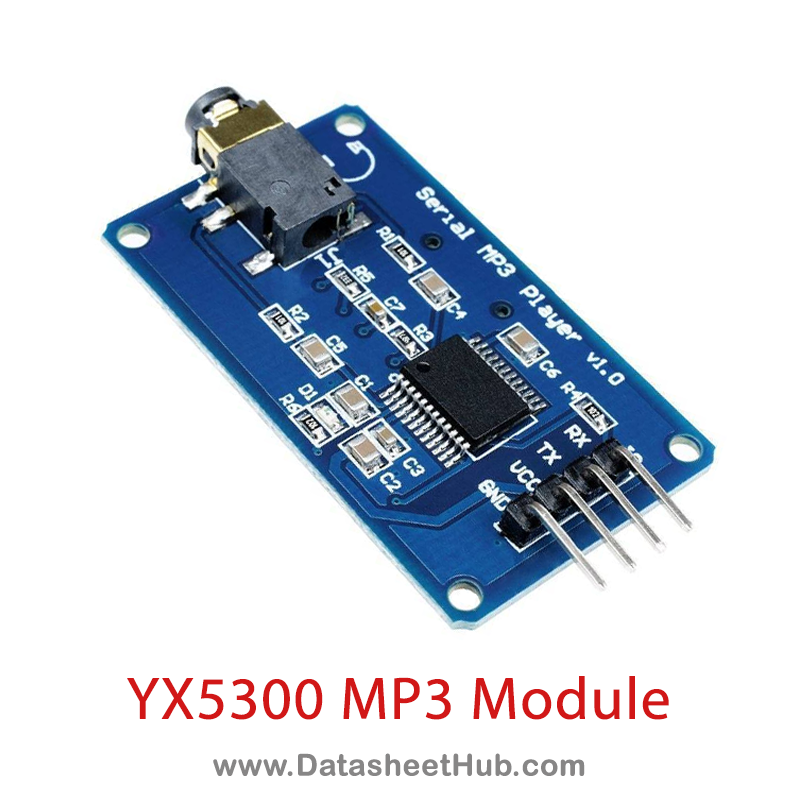

YX5300 UART Control Serial MP3 Music Player Module For Arduino/AVR/ARM/PIC. The module is a sort of straightforward MP3 player gadget which depends on an excellent MP3 sound chip — YX5300. It can uphold 8k Hz~ 48k Hz testing recurrence MP3 and WAV record designs. There is a TF card attachment ready, so you can plug in the miniature SD card that stores sound documents. MCU has some control over the MP3 playback state by sending orders to the module through the UART port, like exchanging tunes, changing the volume and play mode, etc. You can likewise investigate the module through USB to the UART module. It is viable with Arduino/AVR/ARM/PIC.

Features of YX5300 MP3 Player Module

  • Support Micro SD card, Micro SDHC Card
  • 30-class adjustable volume
  • UART TTL serial control playback mode, the baud rate is 9600bps

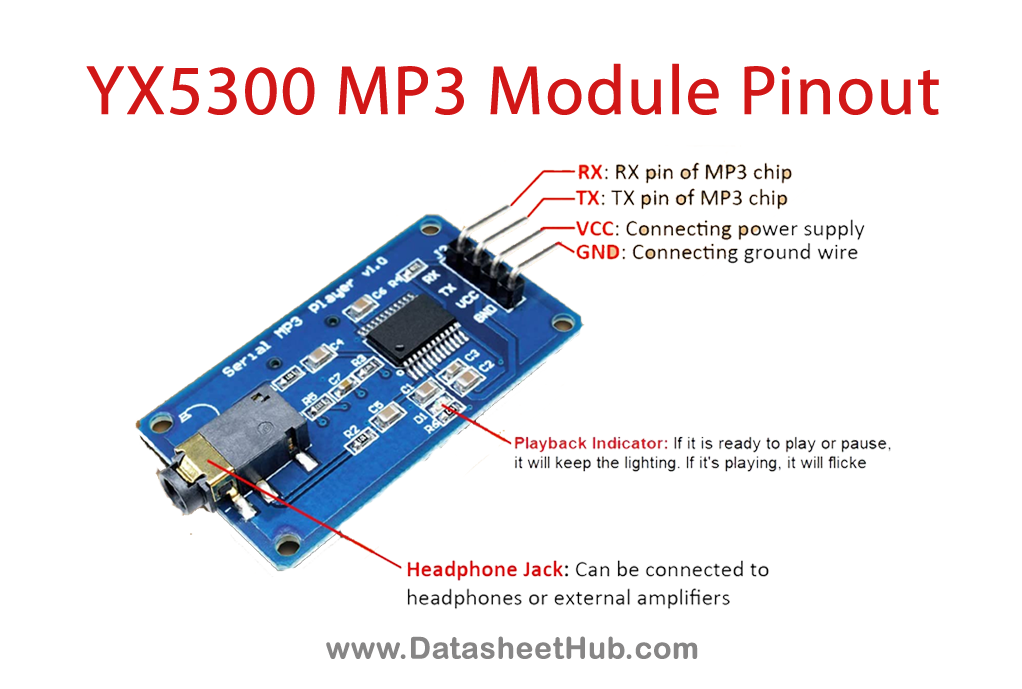

Pinout of YX5300

Pin NamePin Description
VCCConnecting Power Supply
GNDConnecting Ground Wire
RXRX Pin of MP3 Chip
TXTX Pin of MP3 Chip

Specifications of YX5300

Support sampling frequency (kHz)8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
Support file formatMP3 / WAV
The power supply3.2 ~ 5.2VDC

Datasheet of YX5300

Download YX5300 MP3 Music Player UART Control Serial Module Datasheet from the link given below.
