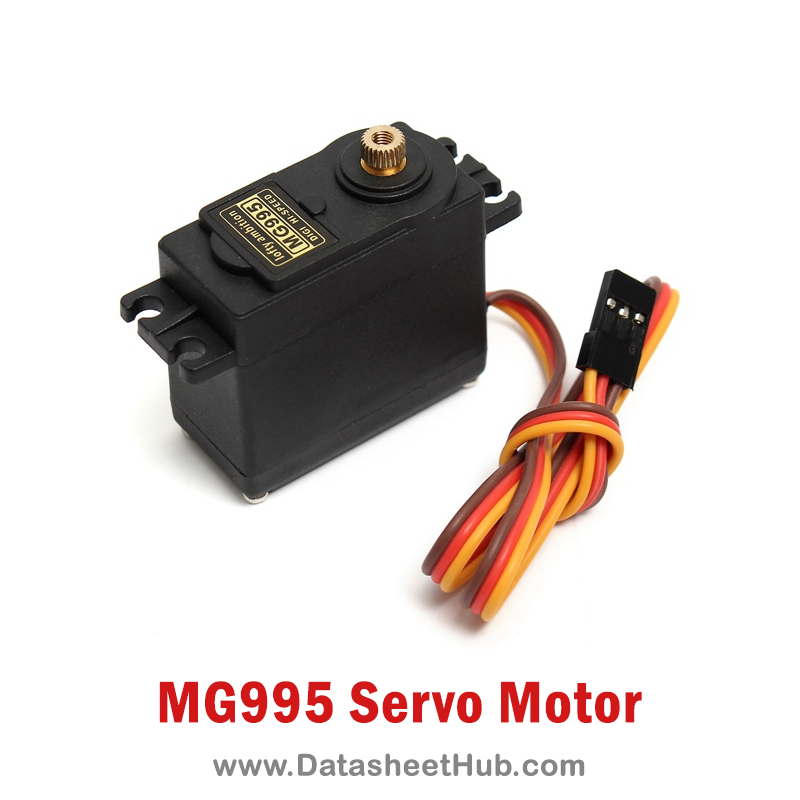

MG995 is a high-speed actuator with a strong, dual-bearing, servo motor featuring all metal gears. This servo can deliver up to 208 oz-in of torque at 6V and achieves a rotational speed of 0.13 seconds per 60°. When the voltage is dropped to 4.8V, it still maintains 180oz-in of torque and 0.17 seconds per 60°.
MG995 servo motor works with standard RC servo pulses, providing a running angle of approximately 180° over a servo pulse range of 600 µs to 2400 µs. This servo actuator is popular for its performance and low price. It is used in many applications mainly robotics and drones.
MG995 Servo Motor Key Features
- Metal geared servo for more life
- Stable and shockproof double ball bearing design
- High-speed rotation for quick response
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
- Weight: 55 g
- Dimension: 40.7×19.7×42.9mm
- Operating voltage range: 4.8 V to 7.2 V
- Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6v)
- Operating speed: 0.2 s/60º (4.8 V), 0.16 s/60º (6 V)
- Rotational degree: 180º
- Dead band width: 5 μs
- Operating temperature range: 0ºC to +55ºC
- Current draw at idle: 10mA
- No load operating current draw: 170mA
- Current at maximum load: 1200mA

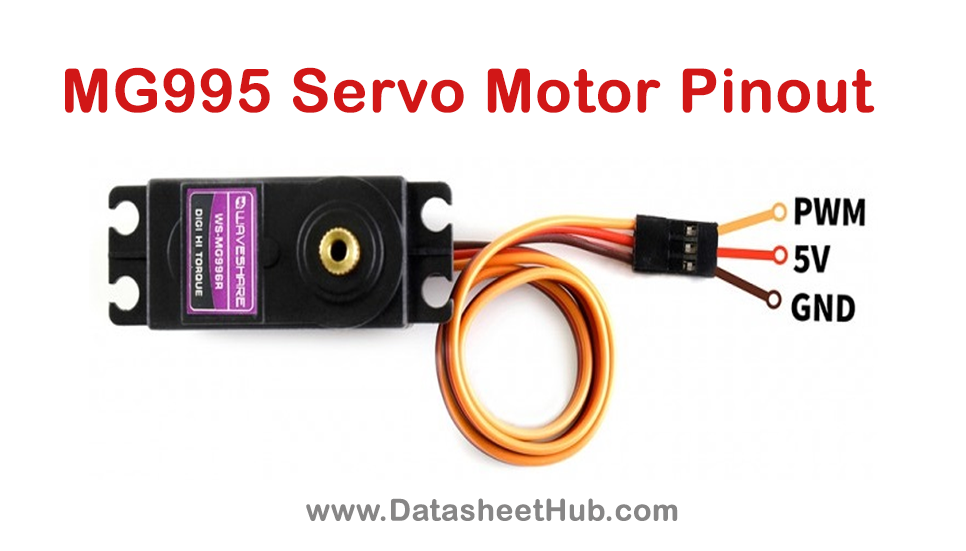

MG995 Motor Pinout
| Pin Name | Pin No. | Description |
|---|---|---|
| Signal pin | 1 | The PWM signal which states the axis position is given through this pin. |
| VCC | 2 | A positive power supply for the servo motor is given to this pin. |
| Ground | 3 | Ground Pin |
Specifications
Mechanical Specification
| Size | 40.4*19.9*37.5mm |
| Weight | 58g |
| Gear type | 5 metal gear |
| Limit angle | 180°±5° |
| Bearing | DUAL BB |
| Horn gear spline | 25T |
| Horn type | Metal |
| Case | Engineering plastics(Polyamide) |
| Connector wire | FP: 240mm±5mm JR: 300mm±5mm |
| Motor | DC motor |
| Splash water resistance | No |
Electrical Specification
| Operating voltage | 4.8V |
| Idle current | 5mA |
| No load speed | 0.17 sec/60° |
| Running current | 350mA |
| Peak stall torque | 9.0 kg.cm |
| Stall current | 1500mA |
Control Specification
| Command signal | Pulse width modification |
| Amplifier type | Digital controller |
| Pulse width range | 500-2500 μsec |
| Neutral position | 1500usec |
| Running degree | 180°±3°(when 500～2500μsec) |
| Dead bandwidth | 4 μsec |
| Rotating direction | Counterclockwise (when 500～2500μsec) |
Applications MG995
- Drones and RC planes
- Security camera
- Robotics
- Solar tracking and positioning
- Door lock and safe locks
Datasheet MG995
You can download the datasheet for MG995 Hi-Speed Dual Ball Bearing Servo Motor by clicking the link given below:
